Pallet racking is an engineered, vertical warehouse storage system where upright and beam assemblies form multi-level industrial shelving configured to store palletized unit loads across elevated horizontal rows.
By storing goods vertically rather than relying on floor-level stacking, facilities dramatically increase structural volume and cubic storage density.
A warehouse racking system is not merely static steel; it is the physical foundation that governs material flow, safety, and inventory accessibility. That’s why the global warehouse-racking market is rapidly growing – estimated at $10.5 billion in 2026 and projected to reach $12.4 billion by 2030.
Today, selective pallet racking represents more than 38% of global warehouse-racking revenue, with drive-in racking standing as the second-largest segment.
Selective pallet racking combines flexibility, accessibility, and relatively low upfront cost. Every pallet position remains directly accessible with standard forklifts, making it well suited to operations with high SKU counts, changing inventory mixes, and pick-intensive workflows – like in ecommerce environments.
Its adaptable layout also makes it easier to reconfigure as storage needs change and to integrate with automation as the operation grows.
Physical rack systems fall broadly into two primary categories: static selective systems and dynamic high-density rack styles, even though storage and automation solution providers offer dozens of customized sub-varieties.

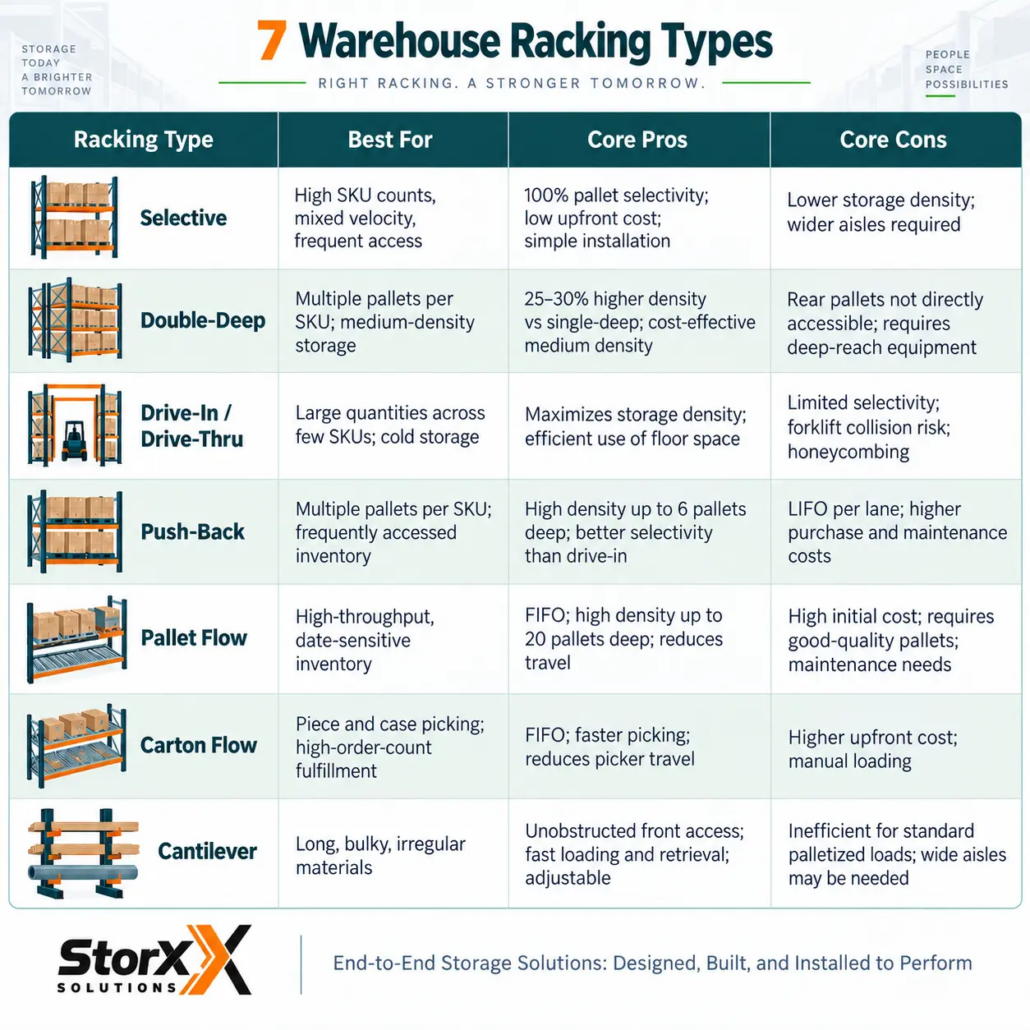

In practice, there are approximately seven major types of pallet racks commonly deployed across commercial facilities.
The different types of pallet racking styles differ in how they balance storage density, pallet accessibility, inventory rotation, equipment requirements, and picking speed. Some prioritize direct access, while others trade selectivity for greater density or faster product flow.
Selective racking represents the foundational framework for standard industrial distribution.
Built from vertical upright frames connected by adjustable horizontal step or box beams, it provides direct, unhindered access to every single pallet location without repositioning other pallets, giving operations strong flexibility across large and varied SKU ranges.
Double-deep pallet racking is a higher-density adaptation of selective racking that stores pallets two deep, one behind the other, from each aisle face.
By increasing rack depth and reducing the number of access aisles required, facilities can store more pallets within the same floor area.
Drive-in and drive-thru racking are high-density storage systems in which forklifts enter the rack structure to place or retrieve pallets stored several positions deep. Drive-in racking uses the same side for loading and retrieval, while drive-thru racking provides access from both ends.
Push-back racking stores pallets on nested carts that move along inclined rails. Each new pallet pushes the previous load deeper into the lane; when the front pallet is removed, gravity moves the next pallet forward.
Pallet flow racking, also called gravity flow racking, uses inclined roller tracks to move pallets automatically from the loading side to the picking side. Brakes control pallet speed as loads move forward by gravity.
Carton flow racking uses inclined roller or wheel tracks to move cartons from the rear loading side to the front pick face by gravity. Unlike pallet flow, which moves full pallets, carton flow is designed for cartons, cases, totes, and smaller non-palletized items.
Cantilever racking uses horizontal arms extending from rear upright columns, leaving the front of the rack open for storing loads that do not fit efficiently in standard pallet racking.
Beyond conventional pallet storage, specialized pallet racking systems are designed to make better use of vertical space, compact storage areas, or support more specific picking and storage requirements.
Multi-tier racking uses multiple levels connected by stairs to make greater use of vertical warehouse space for manual picking. Conveying equipment is typically used to move picked goods out of the system.
Mobile racking places storage racks or shelving on movable bases that travel along tracks. The rows can be compacted together and opened where access is needed.
Racking decisions can also affect the path to warehouse automation.
Some high-density storage systems integrate naturally with semi-automated technologies such as pallet shuttles, while others may require more significant reconfiguration before automation is added.
For now, automation remains the exception rather than the norm: only about 15% of warehouses are automated, while roughly 80% still operate largely manually with support from scanners, tablets, wearables, and similar technologies.
Still, even partially automated storage can change how inventory moves through the warehouse by reducing forklift travel, manual handling, and repeated retrieval tasks.
Pallet shuttle systems use electrically powered shuttles that travel along rails within deep storage channels to move pallets. This reduces the need for forklifts to travel inside the storage lanes.
AS/RS use computer-controlled cranes or shuttles to store and retrieve inventory automatically within engineered racking structures. They make greater use of vertical space, reduce manual handling, and support precise inventory control in high-density facilities.
These automated systems can also integrate with warehouse management systems, conveyors, and other material handling equipment.
Most warehouses choose racking based on upfront cost or what they’ve used before. Indeed, in a recent survey, 48.6% of distribution-center respondents identified cost reduction as their primary organizational goal.
That approach, though, misses the bigger picture. A system that looks affordable at installation can add significant labor cost over a three-to-five-year period if it slows your pick cycle or limits throughput.
Start with a few practical questions:
These answers help determine whether your operation should prioritize accessibility, density, inventory rotation, labor efficiency, or automation readiness.
Balancing these factors helps refine warehouse layout design, improve key warehouse KPIs, and support better warehouse space optimization.
The right system should be evaluated against your actual operation rather than a generic use case or purchase price alone.
The best racking type depends on how your inventory moves, not on price or habit.
